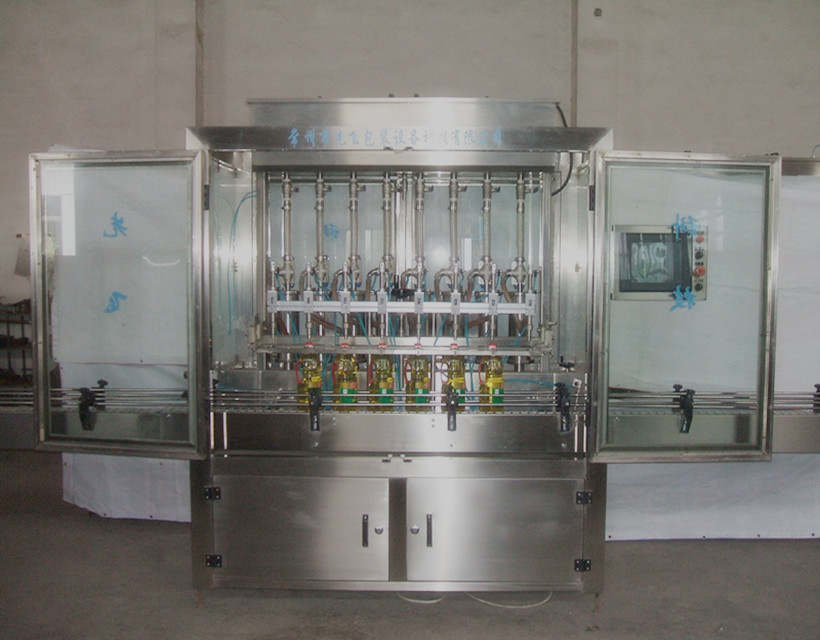

Factory Supply Attractive Price Cream Piston Automatic Oil Filling Machine
Brief introduction
Automatic oil filling machine adopts PLC programmable control system to control each pneumatic actuator to complete the filling.The machine integrates light, machine, electricity and gas into one, with accurate quantitative, high filling accuracy, simple operation and convenient maintenance.According to the various specifications of the bottle type of oil liquid filling, using drip leakage filling head, and add drip leakage resistance liquid tray, so that the filling.The process does not pollute the outer wall of the bottle.
Applications:
1. Widely used in peanut oil, rapeseed oil, salad oil, olive oil, blend oil, soybean oil, sesame oil, pepper oil and other vegetable oil automatic filling.
2. The filling machine is automatic quantitative liquid filling machine, suitable for filling all kinds of oil, such as lubricating oil, edible oil filling.
Specifications:
| Model | ZLDG |
| Filling Volume | 0. 2－5L |
| Filling accuracy | ±0.3% |
| filling head | 2,4,6,8,10,12Heads(Optional filling head) |
| Production capacity | 300-1500bottles／hour |
| Air pressure | 0. 5-0. 8Mpa |
| Power source | 50Hz 3N-380V ±10% |
| Total power | 3. 0KW |
| Contour dimensions | 1500x1100x2000mm |
Elements brands list:
Factory Supply Attractive Price Cream Piston Automatic Oil Filling Machine
Competitive Advantage:
1. Adopt high strength stainless steel frame, easy to disassemble, easy to clean, in line with GMP requirements.
2. man-machine interface, directly set the filling amount, filling amount and filling speed adjustment is simple, by the touch screen operation and display, beautiful appearance.
3. PLC program control, inverter speed linear filling.
4. High precision liquid pump, quantitative accurate and reliable.
5. mechanical seal and automatic suction double leakage prevention.
6. Fast first and then slow double flow rate of efficient filling.
What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?
1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers
2. Sample services
We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory
3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.
4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
Tag: olive oil filling machine,motor oil filling machine,engine oil filling machine
